CNP pumps

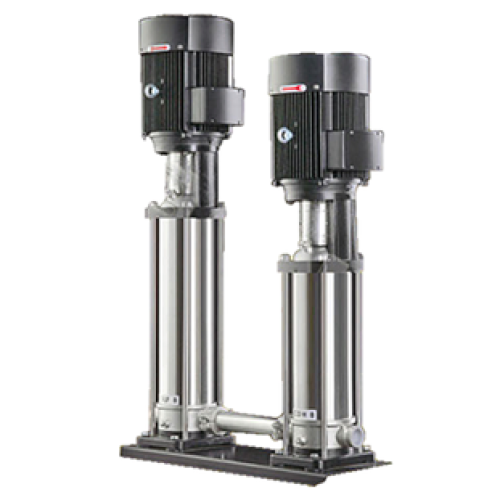

CDLF+CDH Series High Pressure Pump

Specially designed & developed, CDH Pump is connected in series with CDLF pump to increase the pressure up to 48 bar (Max). Stay bolts & outer casing are specially developed to bear high inlet pressure. Compared to CDLF, CDH pump has a reverse rotating direction; pump flow is also in reverse direction. This way, the mechanical seal has to face only the inlet pressure.

Major Applications :-

  • Water Treatment.
  • Ultra-filtration.
  • Reverse Osmosis System
  • Booster System
  • Desalination with Membrane System.
  • High Pressure Flushing System
  • High Pressure Boiler Feed.
  • High Pressure Cleaning.

Key Features :-

  • Reliable, requires low maintenance
  • Energy efficient, light weight & aesthetic structure

Performance Range :-

Flow Range (Q) 0.4 – 28.0 m³/h
Delivery Head (H) Max. 460 mtr (46 Bar)
Liquid Temperature -15 °C~ + 70 °C
Inlet-Outlet PJE connection
Maximum Working Pressure 50 Bar
MOC SS-304, SS-316 & SS 316L
Speed (N) 2900 rpm
Power (P) Upto 37 kW
